Virtualsphere UDM9R is a high-performance single-channel fixed RFID reader. It employs a self-developed high-performance module based on the Impinj E310 chip, working together with an integrated high-…
₹30,000
GST as applicable
In Stock30 units available

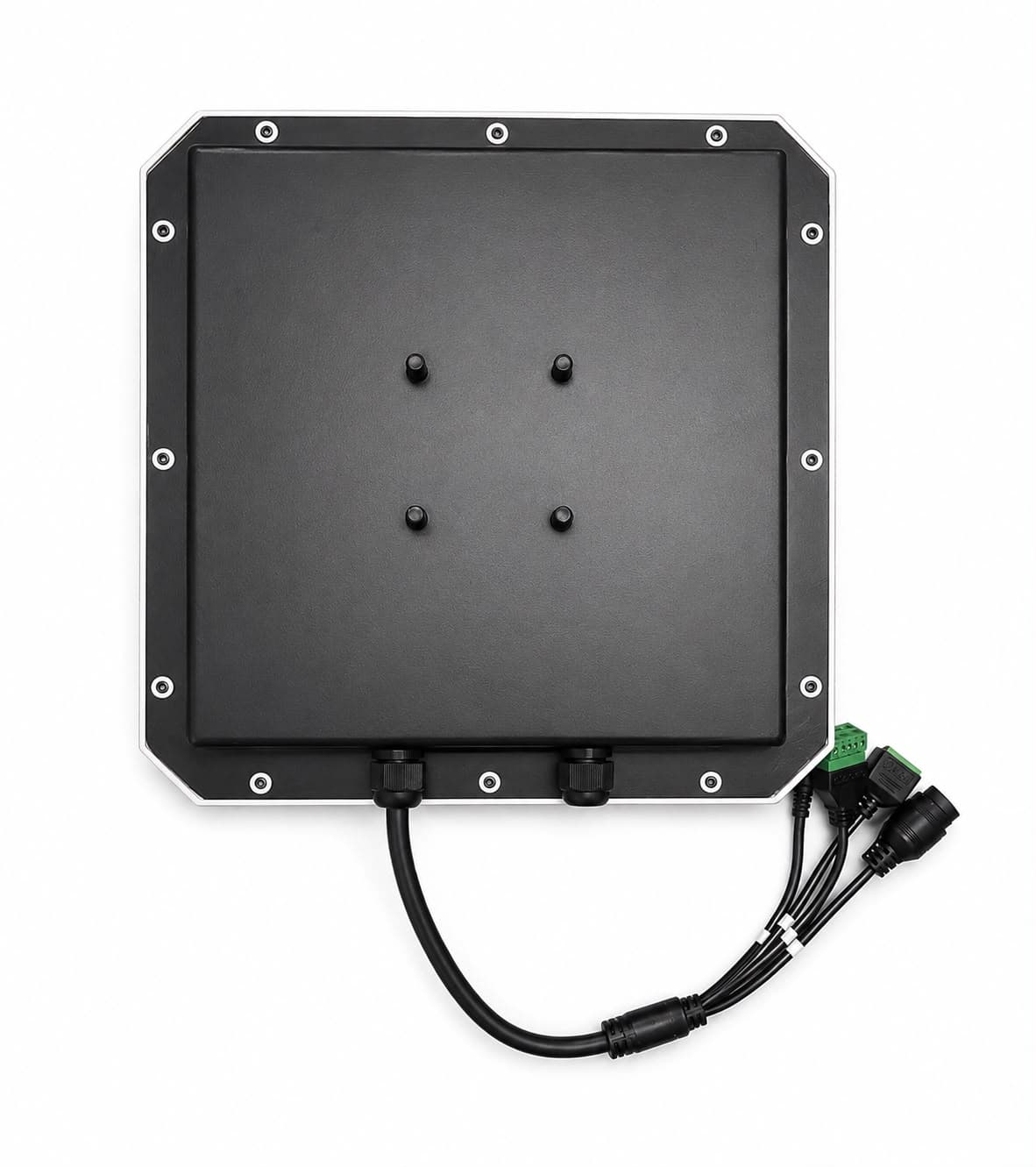

Virtualsphere UDM9R is a high-performance single-channel fixed RFID reader. It employs a self-developed high-performance module based on the Impinj E310 chip, working together with an integrated high-performance antenna, and supports Impinj Gen2X. UDM9R's UHF performance
is outstanding. The reader supports RS-232, RJ45, Weigand, USB and GPIO communication interfaces. UDM9R is applicable widely in warehousing, archives management, library management, banking, production line management, and other fields. Model Name UDM9R-wifi Dimension 270 x 270 x 77mm / 10.63 x 10.63 x 3.03in (9dBi) Comm Interface RS - 232, RJ45, GPIO, Weigand,485 Color: White Material: Plastic + Aluminium Housing Material ABS Baud Rate 115200bps Working Frequency 862 or 870 MHz band (We can do as per your requirements) Engine VM-310-1 based on Impinj E310 chip Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C Gain 9 dbi Input Impedance: 50Ω VSWR ≤1.3 Language: C#, Java, C Language (Easy access/ Integrate Through API )
