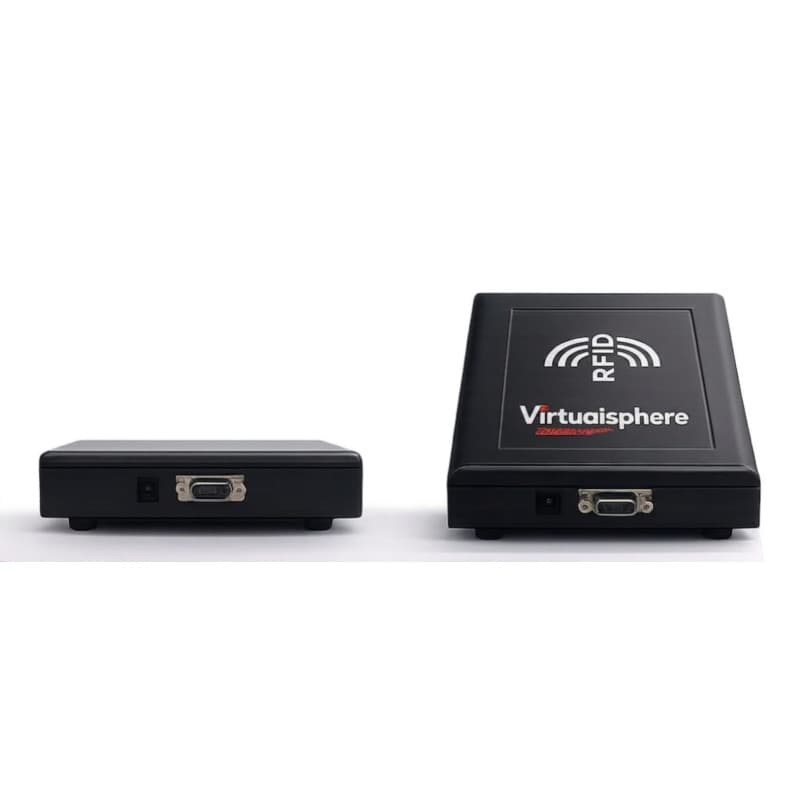

Virtualsphere UDR 102 is a high-performance single-channel fixed RFID reader. With the function as Serial Interface, Desktop Reader UDR 102 series offers a read / write function, which is applicable f…
₹18,999
GST as applicable
Low Stock2 units available
Virtualsphere UDR 102 is a high-performance single-channel fixed RFID reader. With the function as Serial Interface, Desktop Reader UDR 102 series offers a read / write function, which is applicable for — Point of Sales / Registration / Inventory Management for Window, iOS, Android, and Linux. Features: ● Self-intellectual property; ● Designed with IMPINJ E310 and support ISO18000-6C(EPC C1G2) protocol ● Support RSSI, Tag buffer size up to 1000PCS@96bits EPC; ● Built-in 3dBI PCB Ceramic antenna, typical reading effective distance <50cm* ● Lowpowerdissipation ● Provide DLL and Demonstration Software Source code to facilitate further development. ● * Effective distance depends on antenna, tag and working environment. Model Name UDR 102 Dimension 140mm*120mm*40mm Comm Interface RS232+RJ45(optional) Color Black Material Plastic + ABS+Ceramic Operating Mode Answer, Active Baud Rate 115200bps Working Frequency 865-868MHz or customize Engine VM310-1 based on Impinj E310 chip Protocol EPC global UHF ISO-18000-6C(EPC G2), ISO-18000-6B Api Support Window, iOS, Android, Linux Read Range Up To 3-5mtrs Reading Clue Buzzer & LED Output Power 0-33dBm adjustable
