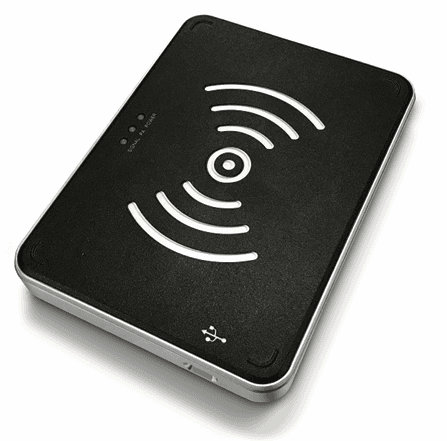

UDR 105, photo 1 of 3

UHF Desktop ReaderSKU VST-UDRW105

UDR 105

The UDR 105 is a desktop reader for tag data programming, with excellent protection and read/write performance, optimized for automatic batch tag data writing and single write operations. Complementar…

₹20,000

GST as applicable

Low Stock3 units available

Request a quote
Frequency
840–960 MHz
Read range
0–60 cm (configuration dependent)
  • Secure payment via Razorpay
  • Questions about this product? +91-7050506400 · WhatsApp
  • Need the SDK or drivers? Request the reader SDK

Overview

The UDR 105 is a desktop reader for tag data programming, with excellent protection and read/write performance, optimized for automatic batch tag data writing and single write operations. Complementary software supports quick Excel import/export for rapid, intelligent, automated data entry. USB connectivity and virtual keyboard input support a variety of complex applications.

Key Features

● Classic industrial form factor with a simple, atmospheric design

● Simple operation via USB connectivity & virtual keyboard support

● Reliable performance with integrated antenna for near-field application & minimum misread

● Robust tag data operation with automatic data handling and DEMO software

● Easy to develop applications with SDKs supporting C#, Android & Java

● Safer to use with direct data encryption for tag operation security

Specifications

Technical data

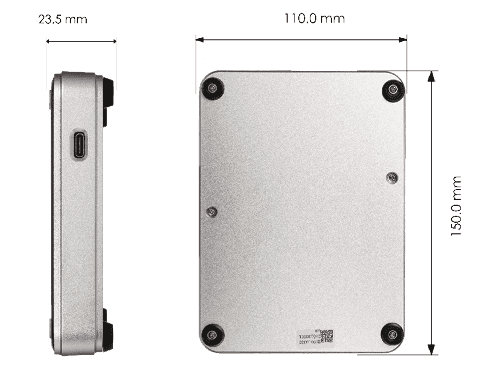

Dimensions
150mm x 110mm x 19mm
Weight
0.5 kg
IP Rating
IP32
Frequency
840–960 MHz
SDK
Yes — C#, Android & Java
Encryption
Yes
Output Power
0–30 dBm (24 dBm typical)
Read Distance
0–60 cm (configuration dependent)
Write Distance
0–60 cm (configuration dependent)
Com Port
Type-C
Power Supply
USB

Product details

Model
UDR 105
SKU
VST-UDRW105
Weight
0.5 Kilogram
Package (L × W × H)
150 × 110 × 19 Millimeter
